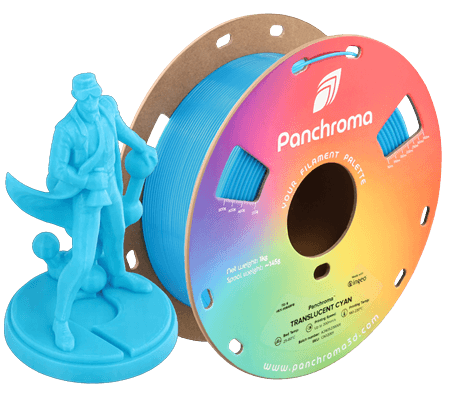

Polymaker Panchroma Translucent PLA CMYK 1kg 1.75mm Filament
Polymaker Panchroma Translucent PLA CMYK 1kg 1.75mm Filament
Out of stock
Couldn't load pickup availability
High quality translucent series of Polymaker™ PLA colours suited for filament painting, lithophanes and lampshades.
- High quality Polymaker Translucent PLA.
- High TD CMYK colour range suits hueforge filament painting.
- Easy-to-print.
- Great rigidity, tensile strength and inter-layer adhesion.
- Consistent colour and tolerance (1.75mm diameter +/- 0.03mm)

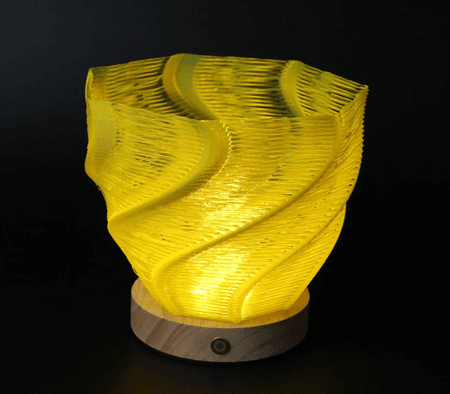

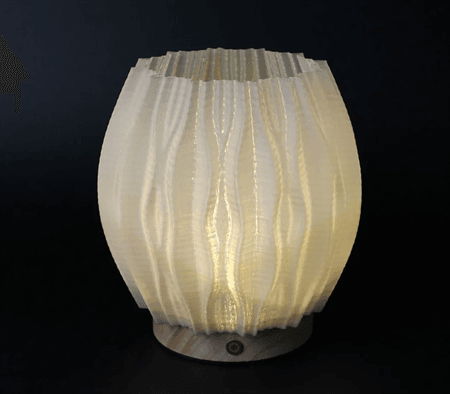

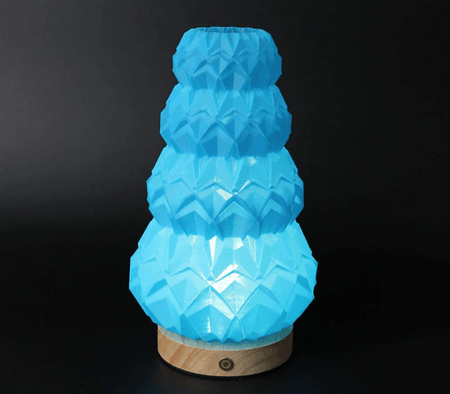

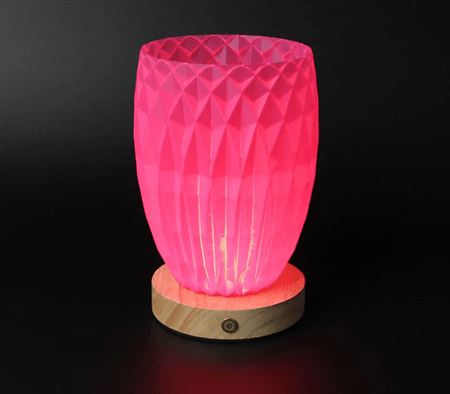

Panchroma™ Translucent PLA (from Polymaker) is a new range of PLA colours developed with a high translucency for single wall lighting and filament painting techniques. Most of the colours in this range have a Transmission Distance (TD) value of 7 or higher, well suited for applications such as HueForge filament painting, lithophanes or lampshades. Available in Cyan, Magenta, Yellow and Grey, Translucent PLA is the perfect CMYK filament range.
Printing with multiple walls or higher infil, you can also use Translucent PLA for a wide range of general use applications.
Features
-
Translucency / High Transmission Distance - Panchroma™ Translucent PLA delivers great translucency offering a Transmission Distance (TD) value of 7 or higher for a range of lighting and Hueforge applications. The Transmission Distance is the amount (in millimetre) of material required to significantly dim the light to a point where more thickness will not notably stop more light. For example a TD of 7 means that 7mm of material would be needed to prevent most of the light to pass through[1]. For the best light transmission and effect we recommend thin or single wall 3D prints and for the best colour blending we recommend thin layer heights (0.04 to 0.08mm) for HueForge application.
-
CMYK Filament - Developed as a CMYK 3D printing colour range, Panchroma™ Translucent PLA deliver a high quality and consistent CMY (Cyan, Magenta, Yellow) and K (Key / Grey) colour with repeatable colour between batches. When printing with multiple walls, this selection of colours are also well suited for general printing applications.
-
High Quality Raw Materials - Panchroma™ Translucent PLA filament is made with the highest quality ingredients including Ingeo® from Natureworks. Natureworks is a world-leading biopolymers supplier based in the USA with a portfolio of high quality raw PLA materials produced from rapidly renewable plant resources. Combining Polymakers innovative R&D technologies, compounding and extrusion systems with Natureworks Ingeo® resins produces a reliable 3D printing filament to print beautiful and accurate models
-
Compatibility In Mind - Panchroma™ Translucent PLA is compatible with a wide range of 3D printers and works well on most printing surface with a thin layer of glue stick applied, no heated bed is required but can sometimes be used at 40 - 60°C for better results (maximum 60°C).
-

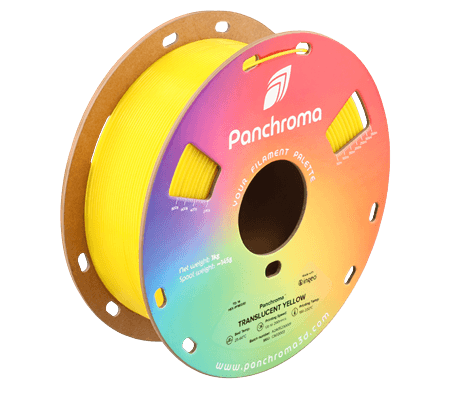

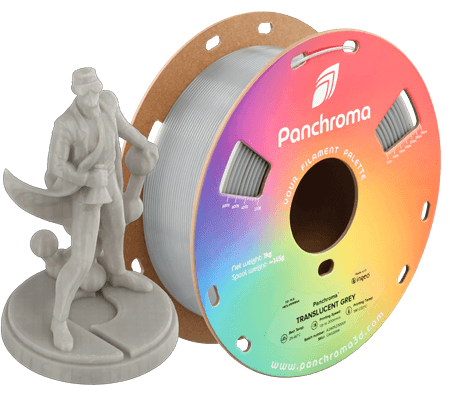

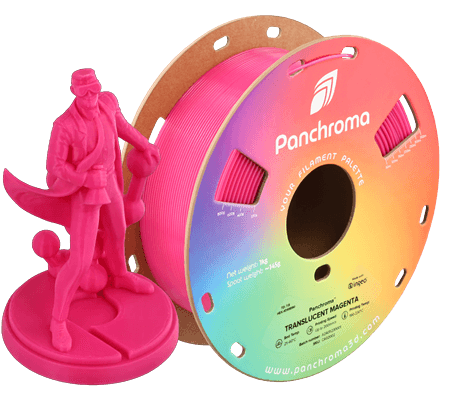

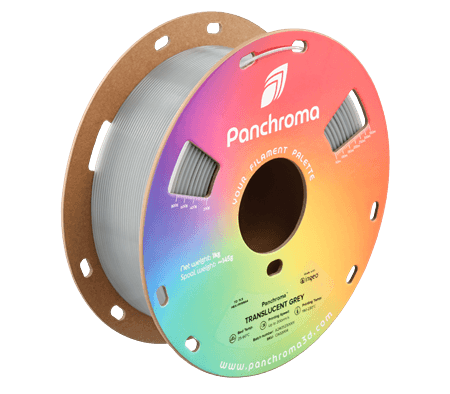

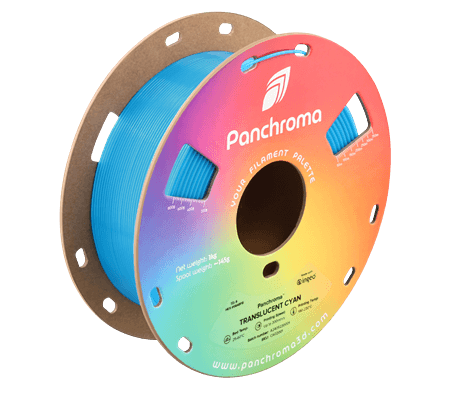

Cardboard spool with coated edge - Panchroma filament comes in upgraded packaging, featuring an enhanced coating on the edge and a fully recycled cardboard spool and box. The hard edge not only prevents the dust from fraying cardboard but also protects the edge from deformation and delamination, ideal for some multi-material systems.
[1] TD is NOT the thickness required to completely stop the light. It is not an exact science however it represents the thickness required to dim the light enough that even if more thickness is added the light will not dim much more. HueForge uses the transmission distance of the filament to calculate the print preview. It is important to generate the resulting color when blending colors together.
Printing Settings
| Nozzle Temperature | 190°C - 230°C |
|---|---|
| Build Plate Temperature | 25°C - 60°C |
| Build Surface Material | Works well with most build surfaces i.e Glass, Blue Tape, BuildTak® etc |
| Build Surface Treatment | Can apply Magigoo Original or PVA glue to the build surface to improve adhesion. |
| Cooling Fan | ON |
| Printing Speed | Up to 200mm/s |
| Recommended Support Material |
Single Extrusion: |
The above are printing recommendations based on 0.4 mm nozzle. Please note ideal printing conditions may vary depending on your 3D printer setup. For high speed 3D printers, make sure to increase your extrusion temperature in order to use higher printing speeds.
For other tips printing Panchroma™ Translucent PLA contact us!
Specification
| Net Weight | 1kg |
|---|---|
| Material Type | Translucent PLA |
| Density | 1.19 (g/cm3) |
Compatibility
Panchroma™ Translucent PLA has been engineered with compatibility in mind to print excellently on a wide range of 3D printers. Please note that some optical filament detection switches can falsely trigger or fail to detect some clear, transparent or semi-translucent filaments. If your printer faces false filament runout triggers, the optical detection switch will need to be disabled.
High rigidity materials like Panchroma™ Translucent PLA work best in set ups where the filament guide system is smooth and as no harsh bends.
Of course with thousands of unique 3d printer models on the market, we can't guarantee each filament type will work with every 3D printer. Slicer experience and setting adjustment is always required to get the most out of a material. Before jumping into an ambitious project we always recommend printing some known calibration tests to build or make adjustments to the filament profile.
Technical Data
All testing specimens were printed under the following conditions: Nozzle Temperature = 205˚C, build plate temperature = 45˚C, infil = 100%, cooling fan = ON
All specimens were conditioned at room temperature for 24h prior to testing.
THERMAL PROPERTIES
| Value | Testing Method | |
| Vicat Softening Temperature | 63°C | ISO 306, GB/T 1633 |
MECHANICAL PROPERTIES
| Value | Testing Method | |
| Youngs Modulus (X-Y) |
3,427 MPa | ISO 527, GB/T 1040 |
| Tensile Strength (X-Y) |
52.3 MPa | ISO 527, GB/T 1040 |
| Tensile Strength (Z) |
40.5 MPa | ISO 527, GB/T 1040 |
| Notched Charpy Impact Strength (X-Y) |
3.3 kJ/m2 | ISO 179, GB/T 1043 |
We have full MDS for Panchroma™ Translucent PLA and all other Polymaker products. Contact us to enquire!
The typical values presented in Polymakers data sheet are intended for reference and comparison purposes only. Due to the nature of 3D printing they should not be used for design specifications or quality control purposes.
STORAGE & DRYING
All plastics are hygroscopic meaning they absorb moisture from the air which can affect printing quality and strength of printed parts. How quickly this absorption occurs depends on the material and your environment. Polymakers Panchroma™ Translucent PLA filaments are dried and packaged in a vacuum sealed bag with desiccant to ensure the best printing quality. When not in use Panchroma™ Translucent PLA should be stored away from sunlight and sealed in the packaged resealable bag.
Although filaments can be dried, drying will speed up the aging process of the plastic making it more brittle over time. Preventing the filament from absorbing moisture in the first place is the best solution to keep your filament working to its maximum potential. For long term storage we highly recommend storing in a sealed container with dry desiccant that reduces the relative humidity to 10-20% RH.
In-house we manage our filaments with Polymakers PolyDryer™ which keep offers best-in-class sealing to protect filaments from absorbing moisture
If you hear popping sounds and notice that the surface quality of your print is uneven or the colour is not consistent, this is a likely indicator that the filament has absorbed too much moisture. Spools of Panchroma™ Translucent PLA can be dried with Polymaker PolyDryer™ using power level 1. Alternatively if you have a convection oven that is accurate at low temperatures, users can dry filament in a preheated convection oven at 55˚C for up to 6 hours. Results may vary depending on the accuracy of your oven so please be conservative. For more information about filament drying please read our user guide.
FAQ
Q: What support materials can I use with this product?
A: If your 3D printer supports multi-material 3D printing, Panchroma™ Translucent PLA is compatible with Polymaker’s PolySupport™ and PolyDissolve™ S1 filament. PolySupport™ is a breakaway support material which can be easily peeled away and PolyDissolve™ S1 is a water dissolvable support material, ideal for complex geometries.
Q: Should I rewind this filament if I want to use it with a different spool?
A: We strongly advise against tampering with the product by rewinding. See our article for full details about the risks. All Polymaker filaments are wound with tension but without strain. Rewinding completely rearranges the curvature of the winding and this strain over time can cause most plastics to catastrophically break. If for some reason your printer is locked into fitting less than standard sized spools, there may be safe printable adaptors or external mounting solutions available.
Don't know where to start? Or which filament will suit your application? We have a broad range of support options including telephone support. Contact us today!
